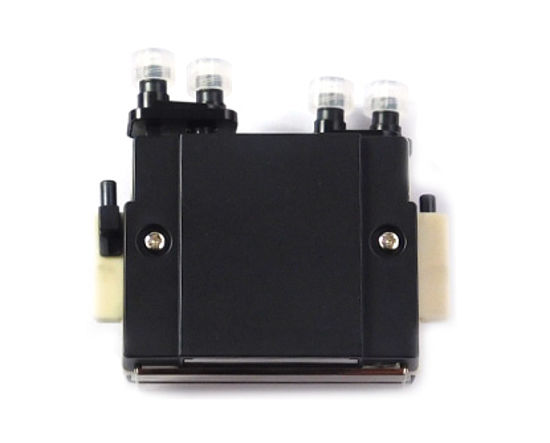

This Toshiba TEC CE4W1 on-demand piezo electric inkjet print head is designed for industrial applications with high print quality.

Unlike conventional binary print heads, this grayscale print head technology is capable of jetting multiple drops within one dot allowing for an image to have 16 levels of grey, since each dot is created through a minimum of 6 pico litre to a maximum of 90 pico litre of ink.

The Toshiba TEC CE4W1 is suitable for UV curable and Oil based inks, has 4 ink inlet ports and a chassis which provides a built-in water channel and complete sealing designed for easy temperature control.

This Toshiba TEC CE4W1 is supplied with head ID, voltage and waveform information.

The following items are expressly excluded from warranty coverage:

    defects related, in any way, to the use of non-original inks
    clogged, missing or deviated nozzles
    defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    defects related to improper loading of media
    all other defects, failures or damage not considered manufacturing defects
    defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    defects that are merely cosmetic in nature.

Product Specifications

    Technology: Multi-drop grayscale micro-piezo
    Grayscale levels: 16
    Active nozzles: 636
    Print swathe width: 53.7 mm
    Nozzle pitch: 84,5 μm
    Native resolution: 150 dpi
    Maximum resolution: 300 dpi
    Printhead weight: 148 g
    Dimensions: 85 x 70 x 23 mm
    Drop volume: 6 - 90 pl
    Typical firing frequency: 2.8 - 28 kHz
    Ink Compatibility: oil-based pigment ink and UV curable pigment ink
