FB700 sFRM Printhead only U-l1Q41-67065

FB700 sFRM Printhead only U - L1Q41-67065

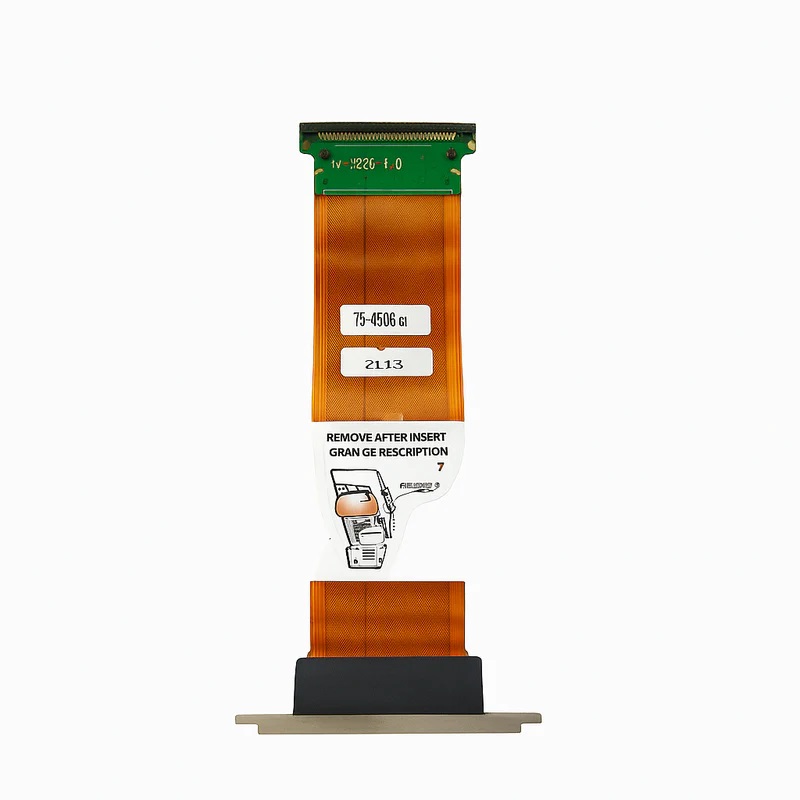

The Ricoh / Hitachi GEN3-E3 (MH1603/1803/1903/338690-001) printhead is suitable for HP FB700 / FB500 printers.

This master printhead is a robust metallic construction offering resolution up to 360dpi for fast speed and high quality printing.

There are 192 channels for a drop volume of 30 or 45 pl. This is HP / HP Scitex original printhead (number L1Q41-67065 replacing CQ114-67019).

This printhead doesn't include the sub ink tank CH104-67001 which was discontinued by HP.

The following items are expressly excluded from warranty coverage:

    Defects related, in any way, to the use of non-original inks
    Clogged, missing or deviated nozzles
    Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    Defects related to improper loading of media
    All other defects, failures or damage not considered manufacturing defects
    Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    Defects that are merely cosmetic in nature.

Product Specifications

    Size: 7.8 x 120 x 35 mm (excluding cables)
    Head materials: SST, Pd and Epoxy Adhesive
    Nozzle plate surface: Non-coated SST
    Number of nozzles: 192 nozzles
    Nozzle spacing: 0.3387 mm
    Piezo type: D33 Stacked PZT
    Temperature control: Integrated Heater and Thermistor
    Operator temperature range: Up to 80° C
    Native drop volume: 30 pl - 45 pl
    Drop volume range: 12-50 pl
    Jetting frequency: Up to 30 kHZ
    Life: 100 billion actuations per nozzle
    This printhead carries a manufacturer warranty.
