Konica KM512 LN 42PL Printhead - DP part: PPHKM512LN

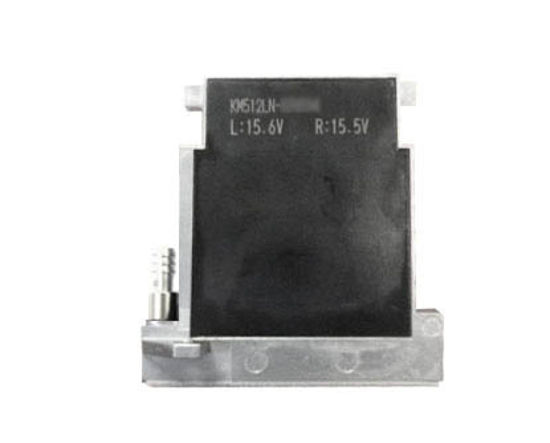

Konica KM512 LN 42PL Printhead

The Konica Minolta KM512 LN print head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only.

The Konica Minolta KM512 LN print head has 512 nozzles with a droplet size of 42 pico litre and a native resolution of 360 dpi.

It is compatible with oil based, solvent and UV inks. This print head is also known as the Konica Minolta KM512 LNX.

This is Konica original print head and it includes the necessary waveform information.

    Defects related, in any way, to the use of non-original inks
    Clogged, missing or deviated nozzles
    Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    Defects related to improper loading of media
    All other defects, failures or damage not considered manufacturing defects
    Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    Defects that are merely cosmetic in nature

    Technology: On-Demand Piezo Electric
    Native Resolution: 360 dpi
    Cal. Droplet Size: 42 pico litre
    Tot. Amount of Nozzles: 512 (256 nozzles per line)
    Nozzle Spacing: 70.5 microns
    Print Width: 36.1 mm
    Firing Frequency: 7.6 kHz
    Ink Compatibility: Oil Based, Solvent and UV Inks
    Heater: not integrated
    This printhead carries a manufacturer warranty.

On the Agfa :Anapurna Mv and :Anapurna Mw printers, the KM512 LN 42PL is used for Varnish (Mv) or White Ink (Mw). For all other colours, PPHKM512MN is used.
