Rastek H650 Printhead CA4 - 45081936 - DP part: PPHEF15695

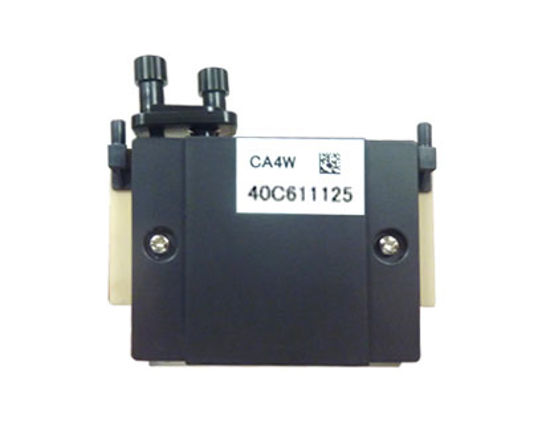

Rastek H650 Printhead CA4 - 45081936

This printhead is suitable for EFI Rastek H650 / Rastek H700 printers.

This is the original EFI part (number 45081936).

Product Specifications

• Technology: Multi-drop grayscale micro-piezo
• Grayscale levels: 16
• Active nozzles: 318
• Print swathe width: 53.6 mm
• Nozzle pitch: 169 μm
• Native resolution: 150 dpi
• Printhead weight: 148 g
• Dimensions: 85 x 70 x 23 mm
• Drop volume: 6 - 90 pl
• Typical firing frequency: 2.8 - 28 kHz
• Ink Compatibility: oil-based pigment ink and UV curable pigment ink
