Snapmaker 200W CNC Module Bundle

Snapmaker 200W CNC Module Bundle

Product Overview
• 16x CNC Machining Efficiency: Offers 300% more power and a 50% higher maximum spindle speed than the 50W CNC Module.
• High Machining Quality: Ensured by the strengthened X/Y/Z-axis and 18000 RPM spindle.
• Expanded Material Options for CNC: Precision machining available for hardwood, jade, and other hard materials.
• ER11 Collet: Support over 100 CNC bits.
• Compatibility: Snapmaker 2.0 A250/A250T/A350/A350T/F250/F350, Snapmaker Artisan, Quick Swap Kit

In the Box :

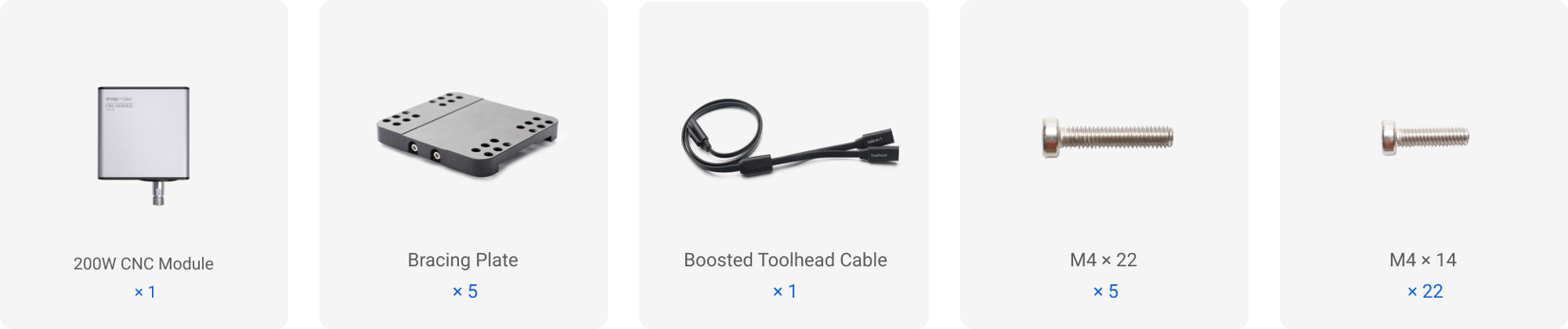

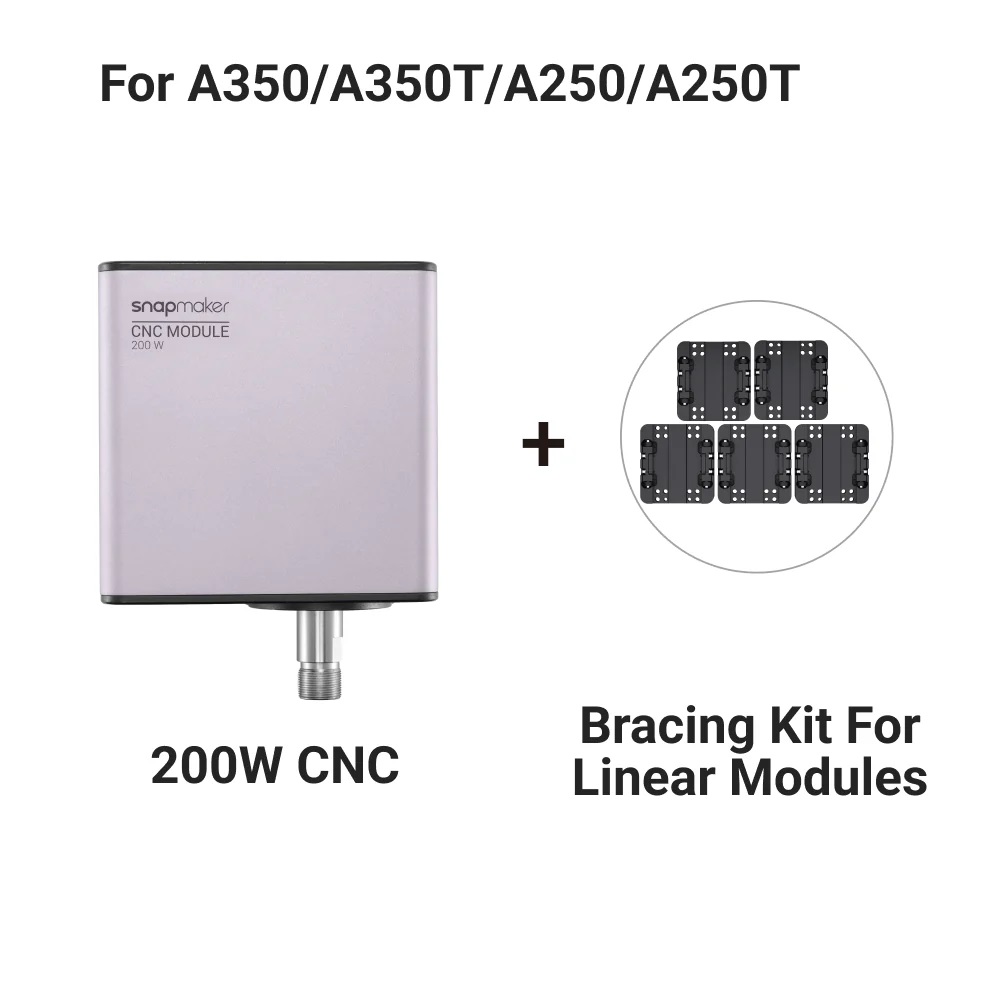

200W CNC Module Bundle for A250/A250T/A350/A350T

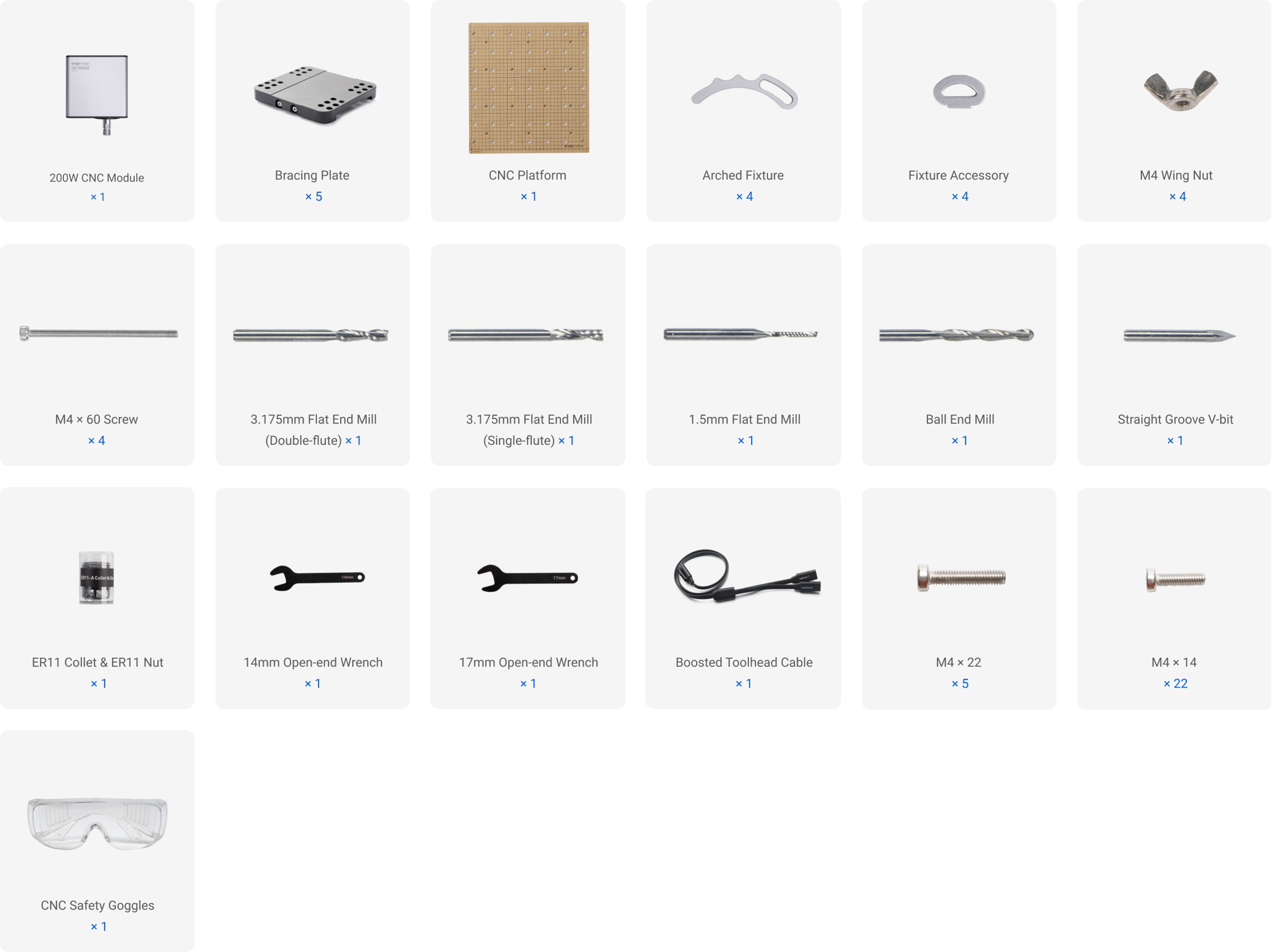

200W CNC Module Bundle for F350

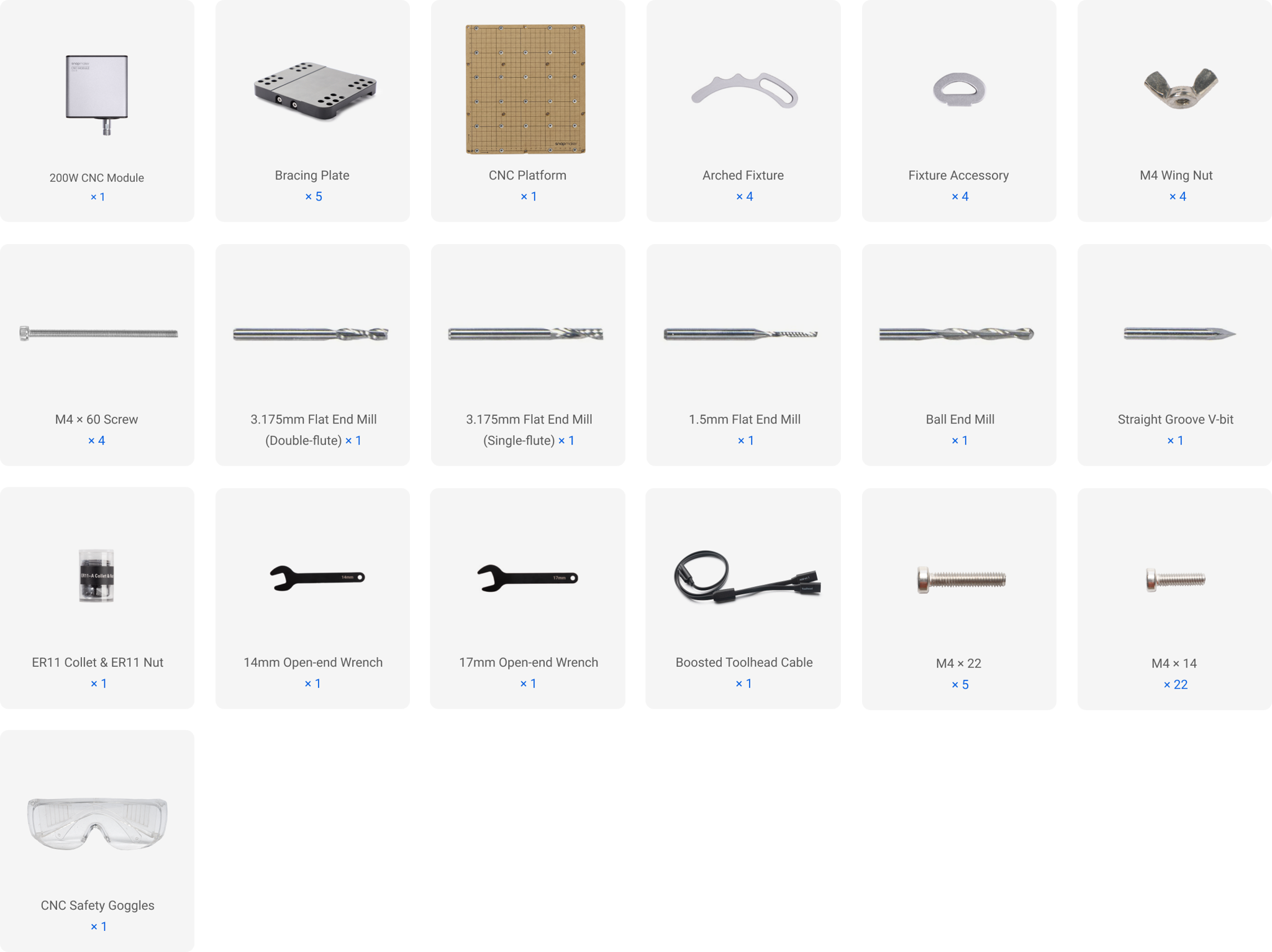

200W CNC Module Bundle for F250

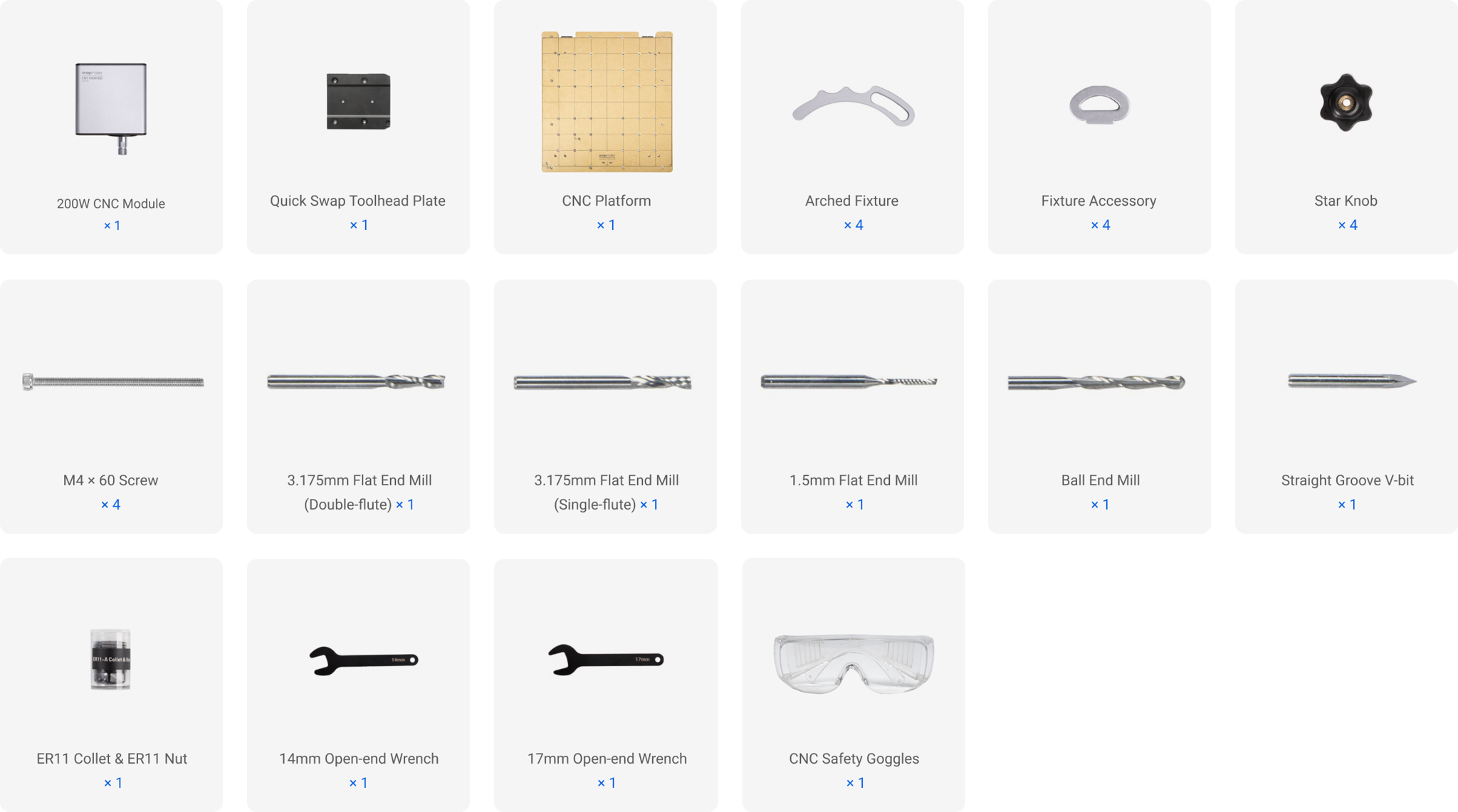

200W CNC Module Bundle for Artisan

16x CNC machining efficiency.

The 200W CNC Bundle offers 300% more power and a 50% higher spindle speed than the 50W CNC Module (without Bracing Kit), increasing beech machining efficiency by 16 times.

High machining quality.

The Linear Modules for Snapmaker 2.0, equipped with the Bracing Kit for added rigidity, along with the 18000 RPM spindle, empower the 200W CNC module to smoothly carve or cut various materials with high machining quality.

A wider variety of materials for CNC.

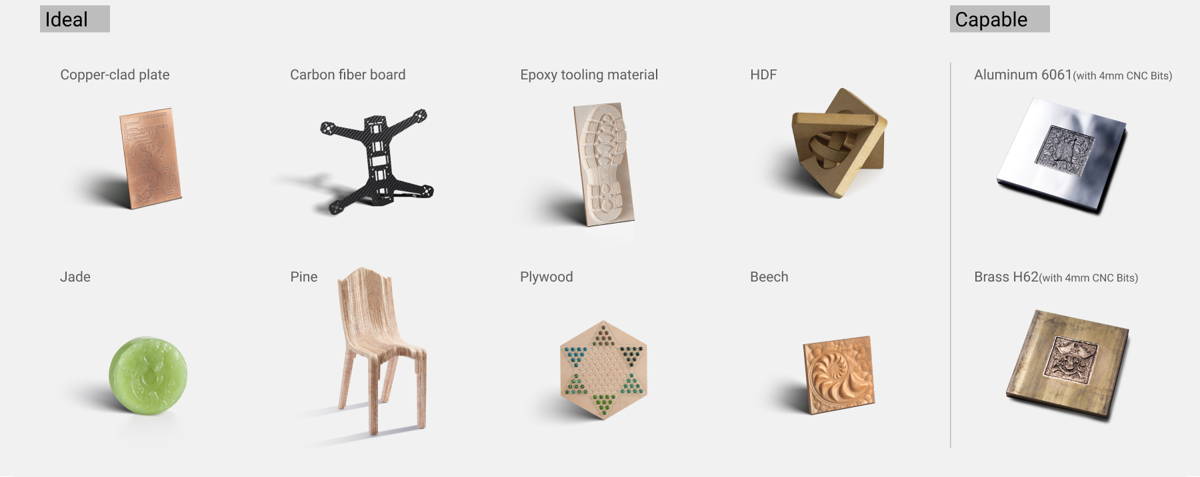

You have the option to choose from a wider variety of materials for CNC. The 200W CNC Module is capable of precision machining on hardwood (such as beech and walnut), jade, and other hard materials.

4-axis CNC machining.

The Snapmaker Rotary Module (Harmonic Drive Version) adds a 4th axis to your Snapmaker, making it an extremely mighty desktop CNC machining powerhouse.

ER11 collet.

The standard ER11 collet ensures better concentricity, enabling a more stable CNC carving speed and larger step-down. Additionally, the collet nut supports over 100 CNC bits with shank diameters ranging from 1mm to 7mm (the provided collet is for 3.175mm CNC bits only).

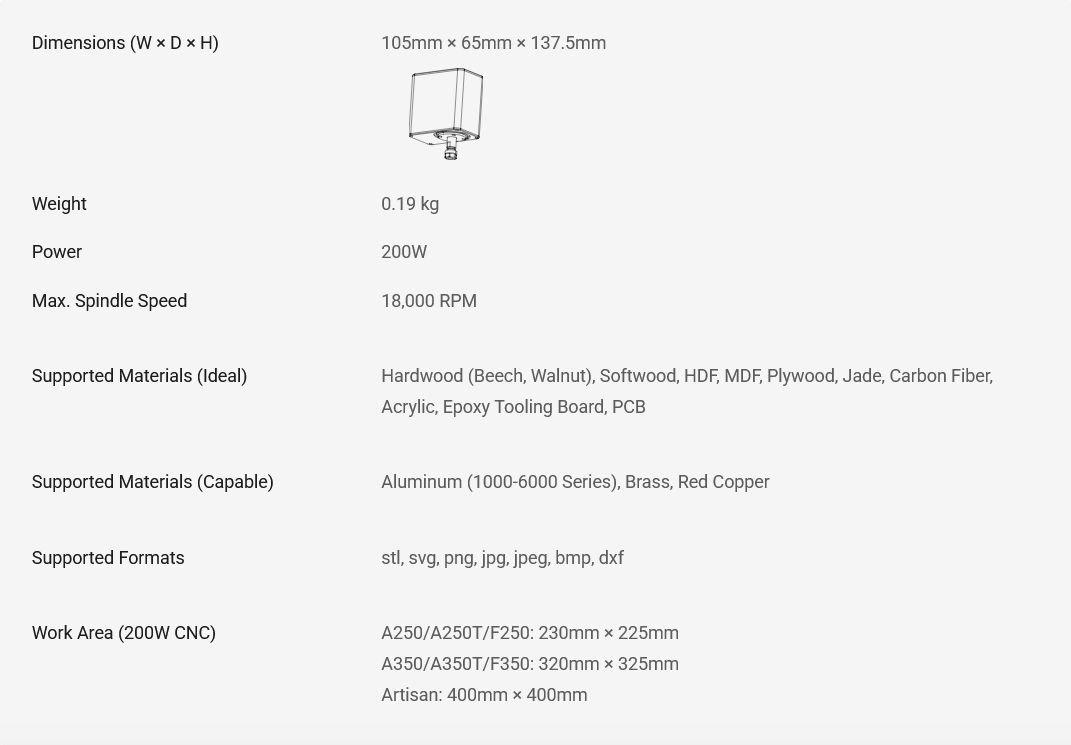

Specifications
