Spectra SL-128 AA - DP part: PPHSPSL128

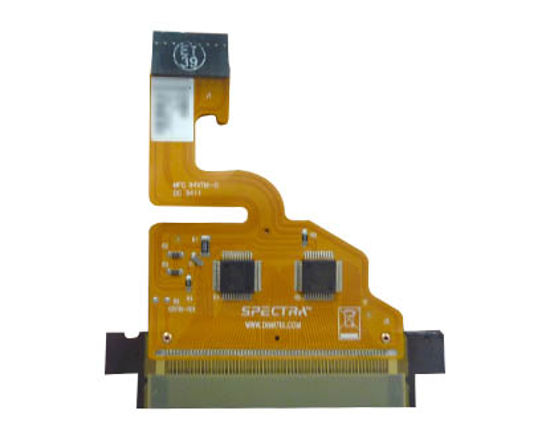

Spectra SL-128 AA

The Spectra SL-128 AA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 450 dpi. Two electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 128 nozzles. It has been calibrated for a droplet size of 80 pico litre and has a maximum firing frequency of 30 kHz.
This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.
These Spectra SL-128 AA heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.

    Defects related, in any way, to the use of non-original inks
    Clogged, missing or deviated nozzles
    Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    Defects related to improper loading of media
    All other defects, failures or damage not considered manufacturing defects
    Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    Defects that are merely cosmetic in nature.

- Technology: Piezo Electric
- Max. Resolution: 450 dpi
- Cal. Droplet Size: 80 pico litre
- Adj. Range for Droplet Size: 65-90 pico litre
- Tot. Amount of Nozzles: 128
- Nozzle Diameter: 50 microns
- Nozzle Spacing: 508 microns
- Firing Frequency: 30 kHz
- Operating Temperature: up to 90°C
- Ink Compatibility: Solvent and UV Inks

Note:
Gandinnovations / AGFA: Jeti printers use SE-128, SL-128 or SM-128 print heads depending on the original printer configuration. Please contact us for more information.

This printhead carries a manufacturer warranty.
