StarFire™ SG1024/SA Printhead - DP part: PPHDI82314

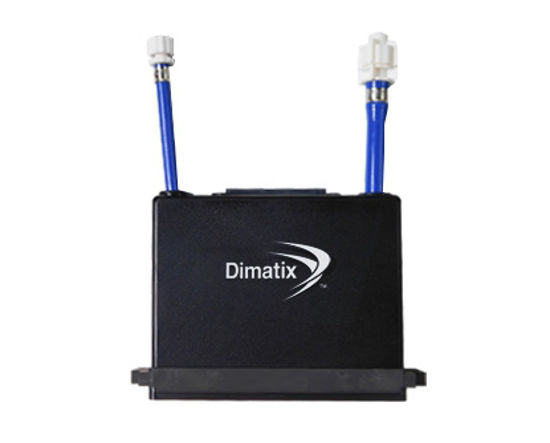

StarFire™ SG1024/SA Printhead

The StarFire™ SG1024/SA is a compact, self-contained unit built to withstand demanding industrial textile and other applications.

It uses field proven materials to deliver consistent output over a long service life with continuous ink recirculation and single color operation at 400 dots-per-inch.

Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage.

The unit is compatible with solvent, UV-curable and aqueous ink formulations.

Each SG1024/SA printhead has 1024 independent channels arranged in 8 rows in a single nozzle plate for resolutions up to 400 dpi. All 1024 nozzles can be fired.

    Defects related, in any way, to the use of non-original inks
    Clogged, missing or deviated nozzles
    Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    Defects related to improper loading of media
    All other defects, failures or damage not considered manufacturing defects
    Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    Defects that are merely cosmetic in nature.

Features

    Robust and repairable construction
    Drop size range: 12pl (50 Hz) - 33pl (18Hz)
    1024 individually addressable jets
    Incorporate VersaDrop™ binary and grayscale jetting
    Continuous ink recirculation with RediJet™
    Removable/replaceable collar mounted, coated metal nozzle plate

 This printhead carries a manufacturer warranty.
