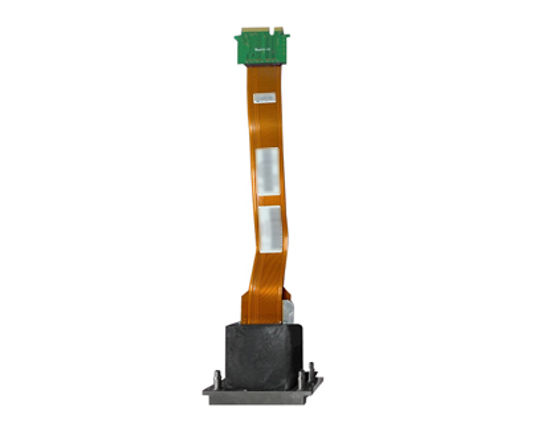

TX400-1800D Head 1 Assy - M011941 - DP part: PPHMI14769

TX400-1800D Head 1 Assy - M011941

This Head 1 Assy is suitable for Mimaki TX400-1800

    -. Defects related, in any way, to the use of non-original inks
    -. Clogged, missing or deviated nozzles
    -. Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    -. Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    -. Defects related to improper loading of media
    -. All other defects, failures or damage not considered manufacturing defects
    -. Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    -. Defects that are merely cosmetic in nature.

    Size: 63 x 63 x 16,2 mm (excluding cables)
    Head Materials: SST, Ni and Epoxy Adhesive
    Nozzle Plate Surface: Non-coated SST
    Number of Nozzles: 2 x 192 nozzles
    Nozzle Spacing: 0,1693 mm
    Piezo Type: D33 Stacked PZT
    Temperature Control: Integrated Heater and Thermistor
    Operator Temperature range: Up to 60° C
    Native Drop Volume: 7 pl
    Drop Volume Range: 5-25 pl with greyscale
    Jetting Frequency: Up to 30 kHZ
    Life: 100 billion actuations per nozzle
    This printhead carries a manufacturer warranty.
