Arizona 550/460 Print Head Assembly - DP part: PPHTO83227

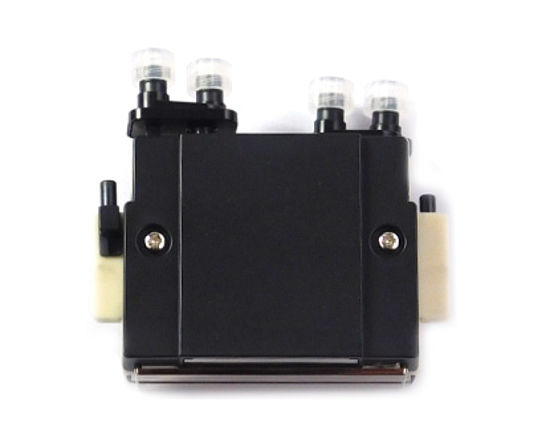

Arizona 550/460 Print Head Assembly

This Toshiba CE4 on-demand piezo electric inkjet print head is designed for industrial applications with high print quality.

Unlike conventional binary print heads, this grayscale print head technology is capable of jetting multiple drops within one dot allowing for an image to have 16 levels of grey, since each dot is created through a minimum of 6 picolitre to a maximum of 90 picolitre of ink.

This CE4 printhead is used on Océ Arizona 550 GT/XT printers. This original Toshiba printhead corresponds to Océ Arizona 3W3010112660 and 3W3010122104 printhead.

    Technology: Multi-drop grayscale micro-piezo
    Grayscale levels: 16
    Active nozzles: 636
    Print swathe width: 53.7 mm
    Nozzle pitch: 84,5 μm
    Native resolution: 150 dpi
    Maximum resolution: 300 dpi
    Printhead weight: 148 g
    Dimensions: 85 x 70 x 23 mm
    Drop volume: 6 - 90 pl
    Typical firing frequency: 2.8 - 28 kHz
    Ink Compatibility: oil-based pigment ink and UV curable pigment ink

    Defects related, in any way, to the use of non-original inks
    Clogged, missing or deviated nozzles
    Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    Defects related to improper loading of media
    All other defects, failures or damage not considered manufacturing defects
    Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    Defects that are merely cosmetic in nature.
