UJF-7151 Plus Head Assembly - M017429 - DP part: PPHMI83242

UJF-7151 Plus Head Assembly - M017429

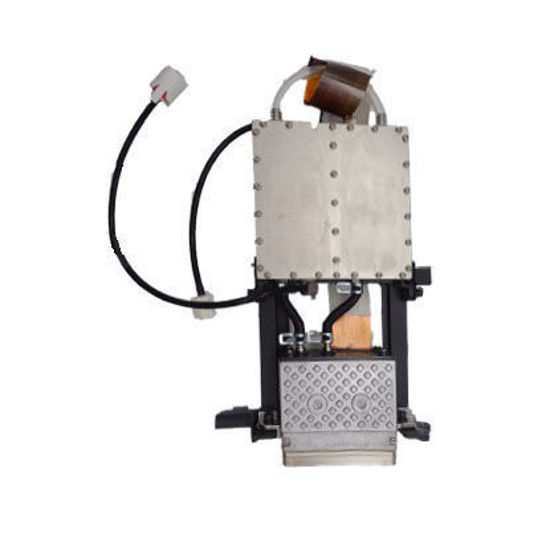

This head assembly is suitable for Mimaki UJF-7151 Plus printers. This is the original Mimaki part (number M017429 replaced by MP-M025074). This head assembly includes brackets, tubes, damper and subtank.

    -. Defects related, in any way, to the use of non-original inks
    -. Clogged, missing or deviated nozzles
    -. Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    -. Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    -. Defects related to improper loading of media
    -. All other defects, failures or damage not considered manufacturing defects
    -. Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    -. Defects that are merely cosmetic in nature

    Print Method: On-Demand piezo technology
    Ink Re-circulation Structure: Ink re-circulation through all channels
    Print Width: 53.7mm
    Nozzles: 636
    Nozzle Resolution: 300npi
    Number of Lows: 2
    Nozzle Spacing (Row to row distance): 4.64mm
    Grayscale Level: 4 levels/0,5,6,7drops
    Drop Volume: 57~80pL
    Frequency: 4.8kHz/7drops
    Power Supply Voltage for Driving the Head: 14~31V
    Power Supply Voltage for Driving Circuit: 5V, 39V
    Ink Type: UV-curing
    Size, Weight: 94.1mm(W)×26mm(D)×79mm(H), 161g
    This printhead carries a manufacturer warranty.
