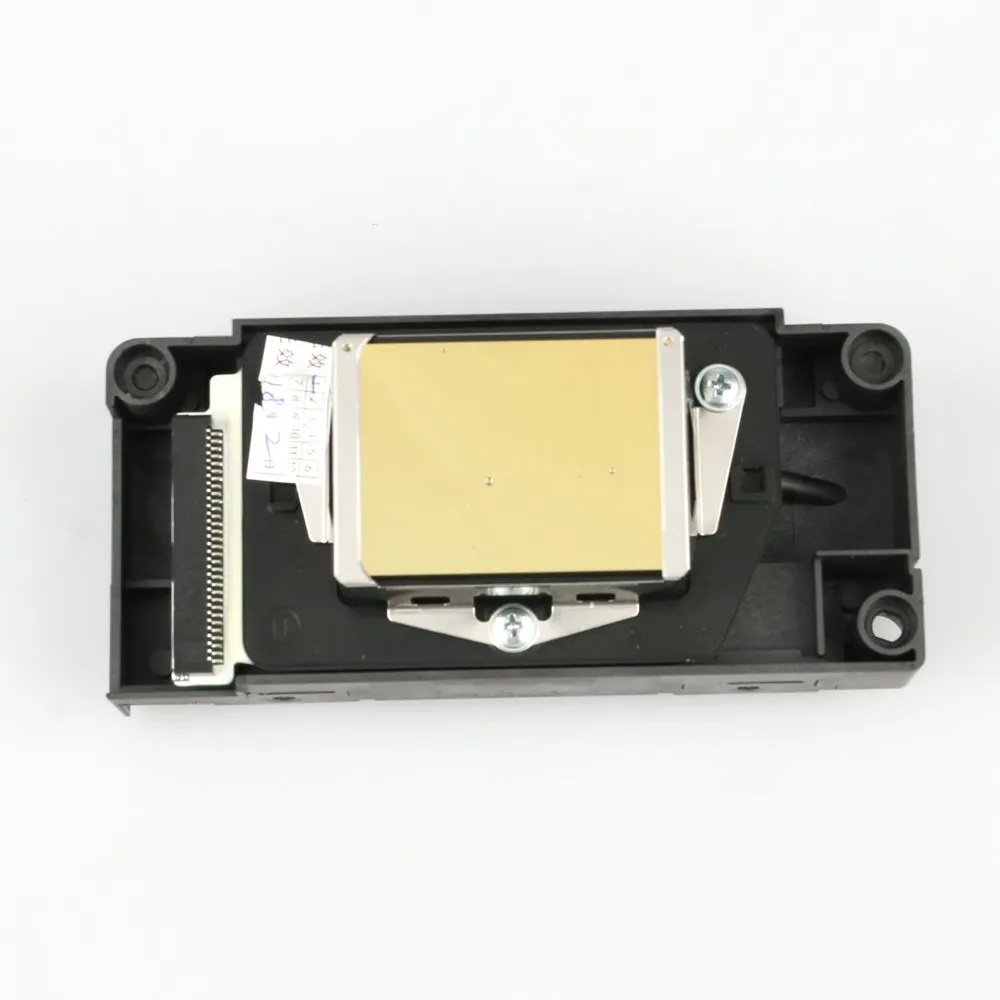

Epson DX5 Printhead F186000 Unlocked

Epson DX5 Printhead F186000 Unlocked

Unlocked for use with various Chinese solvent printers, the Epson DX5 printhead enables fast speed, high-resolution printing with eco-solvent or mild solvent inks.

The Epson DX5 original printhead is delivered in a sealed Epson package.

This DX5 printhead model is compatible with all DX5 based Chinese printers and doesn’t require any decoder.

This is the original Epson DX5 printhead; it is not modified nor coded.

Note: This printhead should not be used on Mutoh Valuejet or JV33 / JV5 printers as it has different voltages and therefore offers a different image quality.

Technology: Micro-Piezo
Native resolution: 1440 dpi
Min. droplet size: 1.5 picolitre
Max. droplet size: 21 picolitre
Tot. amount of nozzles: 1440 (8 lines x 180 nozzles)
Firing frequency: 8 kHz
Ink compatibility: solvent and Eco-solvent based

It is highly recommended to replace the head cables together with a new printhead.
