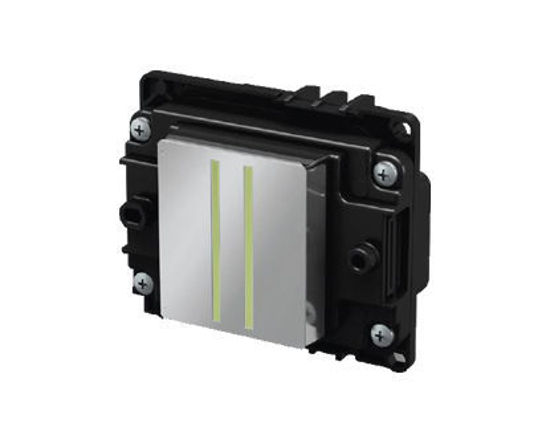

Printhead Epson i1600-U1 UV

Printhead Epson i1600-U1 UV

Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution.

This printhead is suitable for UV inks. It is unlocked.

• Product name: I1600-U1
• Ink type: UV
• Type: PrecisionCoreMicroTFP Printhead
• Width × Depth × Height: 2.7×2.3× 1.4 inch (69.1x 59.4 x 35.6mm)
• Weight: 80g
• Number of nozzle: 1600
• Nozzle pitch / nozzle row: 1/300 inch
• Nozzle rows: 4 rows
• Nozzle Resolution: 300 npi/row 600npi/2 rows
• Max. number of color inks: 4 colors
• Effective print width: 1.33 inches (33.8 mm)
• Viscosity range: 5-7mPa•s
• Positioning Mechanism: Reference hole
• Manufacturer part number: I1600-U1
• Ships 5-7 days
