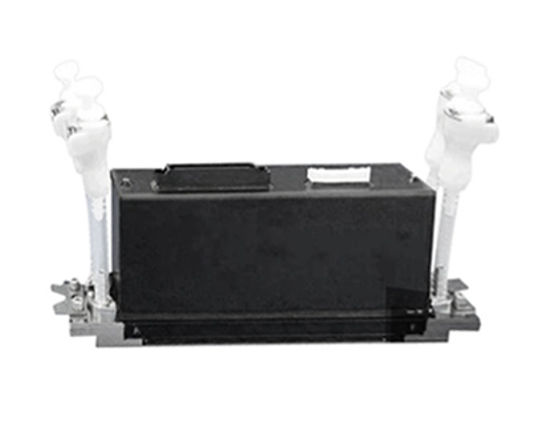

Kyocera Inkjet Printhead KJ4B-0300 - Standard


Kyocera Inkjet Printhead KJ4B-0300 - Standard+4010
  • Kyocera Inkjet Printhead KJ4B-0300 - Standard
Price:
$1,975.89
Brand:
KYOCERA
Condition:
New
Shipping:
Free Shipping
Quantity:

Product Description

This original Kyocera KJ4B-0300 (STANDARD) printhead is compatible with a wide range of direct-to-textile printers including MS and Reggiani printers.

Please read carefully the full description to select the right printhead model.

This Kyocera KJ4B-0300 is designed for high speed printing with water-based inks, in 600 dpiwith a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.The Kyocera KJ4B-QA is equipped with internal filters to preventparticles to reach the nozzle plate and an internal heater that adjusts the temperature. We recommend to change the head cables when installing a new printhead.

The Kyocera KJ4B-0300printhead is available in 3 different models:

- Standard for all printers other than MS and EFI Reggiani

- MS printers including the head cable

- EFI Reggiani printers including the head cable

Please select the printhead model carefully as they are not interchangeable.


The following items are expressly excluded from warranty coverage:
  • Defects related, in any way, to the use of non-original inks
  • Clogged, missing or deviated nozzles
  • Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
  • Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
  • Defects related to improper loading of media
  • All other defects, failures or damage not considered manufacturing defects
  • Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
  • Defects that are merely cosmetic in nature.
Specifications
  • Ink Type:  Aqueous Ink
  • Dimensions: 200 × 36 × 68.5mm
  • Dry Weight: 540g
  • Total Nozzles:2.656
  • Standard Resolution: 300 x 300dpi
  • Print Width: 112mm
  • Max. Drive Frequency: 30kHz
  • Drop Volume: 5, 7, 12 and 18pl
  • Max. Sprint Speed: 120m/min
  • Typical ink viscosity: 5.0-6.0 mPa
  • This printhead carries a manufacturer warranty.

Printer compatibility

Atexco Ajet 3190
Atexco Aprint-3308B
EFI Reggiani BLAZE               		 Hanway Highjet 2500B
HOMER HM1800R
Printerevolution T1800              		 Printerevolution T2600
Printerevolution T3200
Roland ZT-1900
Sign Racer HydroSpeed+
