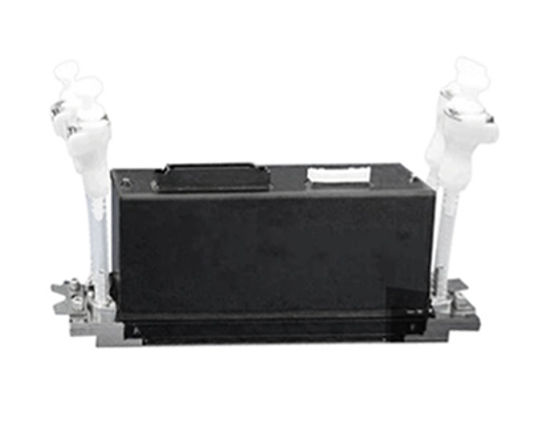

This Kyocera KJ4B-0300 is designed for high speed printing with water-based inks, in 600 dpiwith a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.The Kyocera KJ4B-QA is equipped with internal filters to preventparticles to reach the nozzle plate and an internal heater that adjusts the temperature.



The Kyocera KJ4B-0300printhead is available in 3 different models:

- standard for all printers other than MS and EFI Reggiani

- MS printers including the head cable

- EFI Reggiani printers including the head cable

Please select the printhead model carefully as they are not interchangeable.

The following items are expressly excluded from warranty coverage:

    defects related, in any way, to the use of non-original inks
    clogged, missing or deviated nozzles
    defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    defects related to improper loading of media
    all other defects, failures or damage not considered manufacturing defects
    defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    defects that are merely cosmetic in nature.

Specifications

    Ink Type:  Aqueous Ink
    Dimensions: 200 × 36 × 68.5mm
    Dry Weight: 540g
    Total Nozzles:2.656
    Standard Resolution: 300 x 300dpi
    Print Width: 112mm
    Max. Drive Frequency: 30kHz
    Drop Volume: 5, 7, 12 and 18pl
    Max. Sprint Speed: 120m/min
    Typical ink viscosity: 5.0-6.0 mPa
    This printhead carries a manufacturer warranty.

Printer compatibility
