UJF-605CII Head Assy CA4 - M007040 - DP part: PPHMI11487

UJF-605CII Head Assy CA4 - M007040

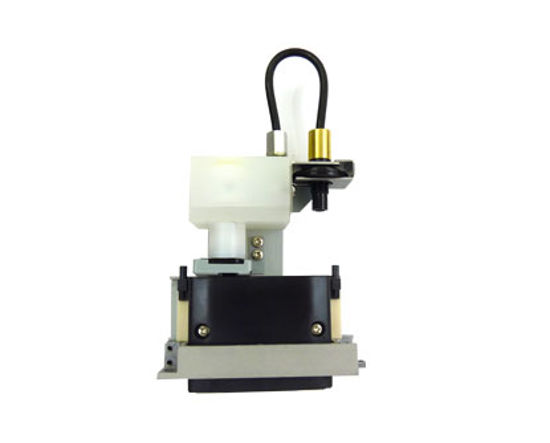

This UJF-605CII head assy is suitable for the Mimaki UJF-605CII / C printers. This assembly includes the printhead, installation bracket, damper and filter.

This is the original Mimaki part (number M007040).

    -. Defects related, in any way, to the use of non-original inks
    -. Clogged, missing or deviated nozzles
    -. Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    -. Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    -. Defects related to improper loading of media
    -. All other defects, failures or damage not considered manufacturing defects
    -. Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    -. Defects that are merely cosmetic in nature.

    Technology: Multi-drop grayscale micro-piezo
    Grayscale levels: 16
    Active nozzles: 318
    Print swathe width: 53.6 mm
    Nozzle pitch: 169 μm
    Native resolution: 150 dpi
    Printhead weight: 148 g
    Dimensions: 85 x 70 x 23 mm
    Drop volume: 6 - 90 pl
    Typical firing frequency: 2.8 - 28 kHz
    Ink Compatibility: oil-based pigment ink and UV curable pigment ink
    This printhead carries a manufacturer warranty.
