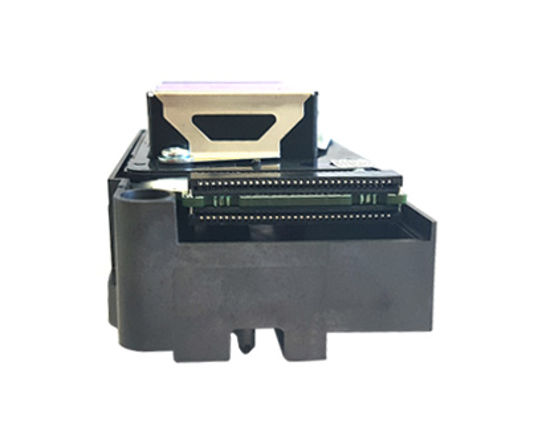

Epson DX5 Eco-Solvent Printhead F186000

Epson DX5 Eco-Solvent Printhead F186000 (Unlock)

Various Chinese solvent printers use the Epson DX5 solvent printhead. This DX5 printhead allows fast speed, high-resolution printing with eco-solvent or mild solvent inks.

The Epson DX5 original printhead is delivered in a sealed Epson package.

This DX5 printhead model is compatible with all DX5 based Chinese printers and doesn't require any decoder.

This is the original Epson DX5 printhead; it is not modified nor coded.

This printhead should not be used on Mutoh Valuejet or Mimaki JV33 / JV5 printers as it has different voltages and therefore offers a different image quality.

PPHMUVJ1204 and PPHMIJV5006 should be used on Mutoh and Mimaki printers.

Product Specifications

• Technology: Micro-Piezo
• Native resolution: 1440 dpi
• Min. droplet size: 1.5 picolitre
• Max. droplet size: 21 picolitre
• Tot. amount of nozzles: 1440 (8 lines x 180 nozzles)
• Firing frequency: 8 kHz
• Ink compatibility: solvent and Eco-solvent based

It is highly recommended to replace the head cables together with a new printhead.
