HP DesignJet T520 36in ePrinter

HP DesignJet T520 36in ePrinter

Price:

$365.46

Brand:

HP

Condition:

New

Shipping:

Calculated at checkout

Product Description

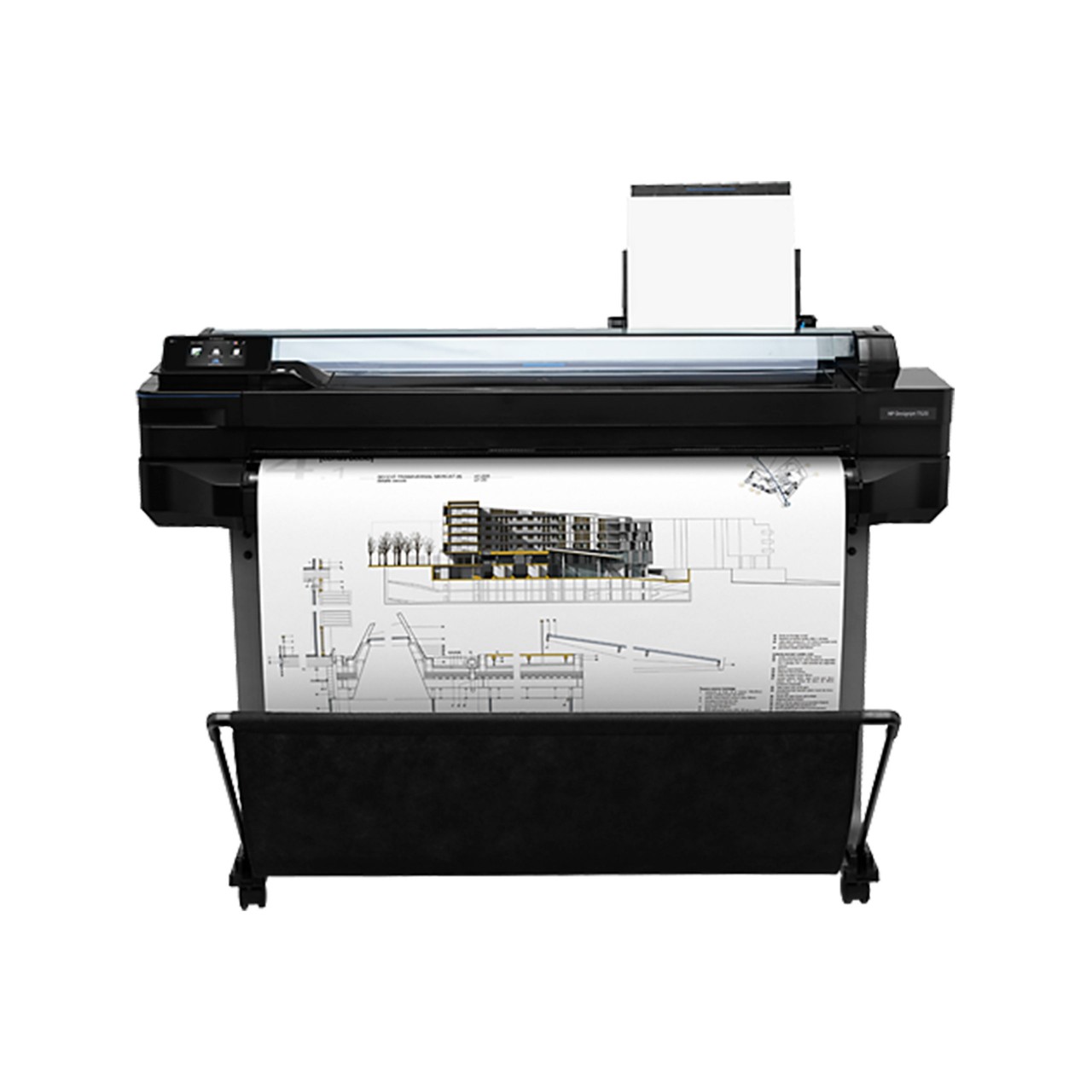

HP DesignJet T520 36in ePrinter

Designed to fit your office—and the way you work—this compact printer makes it easy to print architectural designs, maps, photos, and presentations with sharp detail up to 2400 dpi.

Print easily from a smartphone or tablet with HP Mobile Printing.

Small AEC teams who need to print large-format documents and CAD drawings, print remotely, and network a small office.

Print everything you need from architectural designs to presentations—in large format or half size.

This compact large-format printer enables easy and convenient HP DesignJet quality printing up to 36 inches.

Printing Method
Printing Technology	HP thermal inkjet
Maximum Resolution	1200 x 1200 input dpi
Line Accuracy	± 0.1%
Ink Palette	Cyan, Magenta, Yellow, Black
Ink Type	Dye-Based: Cyan, Magenta, Yellow Pigment-Based: Black
Ink Cartridge Configuration	4 individual cartridges
Maximum Optical Density	2.10 maximum black optical density (8 L*min)
Printer Language	HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4
Print Speed	US D - Best: 16.3 min/page US D - Normal: 9.3 min/page US D - Draft: 1.3 min/page

Paper Handling
Paper-Feed Method	Sheet feed, roll feed, input tray;
Cutter	Automatic cutter
Maximum Paper Width	36.0" (91.44 cm)
Paper Sizes	Sheet: 8.3 x 11.0 to 36.0 x 66.0" (21.0 x 27.94 to 91.44 x 167.6 cm) Roll Width: 11.0 to 36.0" (27.94 to 91.44 cm)
Paper Types	Plain: Bond, coated, heavyweight coated, recycled, plain, bright white Technical: Natural tracing, vellum Film: Clear, matte Photo: Satin, gloss, semigloss, premium, polypropylene Self-Adhesive: Adhesive, polypropylene
Media Thickness	Up to 11.8 mil (299.72 micron)
Media Weight	Roll Feed: 60 to 280 g/m2 Manual Feed: 60 to 280 g/m2 Input Tray: 60 to 220 g/m2
Maximum Roll Print Length	150.0' (46.0 m)
Maximum Media Roll Diameter	3.9" (9.91 cm)

Connectivity
Interface	Hi-Speed USB 2.0 Fast Ethernet (100Base-T) Wi-Fi
OS Compatibility	Windows: Windows 7 Ultimate/Professional/Home Premium, Vista Ultimate/Business/Home Premium, XP (32/64-bit) Professional/Home, Server 2008 (32/64-bit), Server 2008 R2, Server 2003 (32/64-bit) Mac: OS X 10.6, 10.7, 10.8 Citrix: XenApp, XenServer
Internal Memory	1.0 GB

Physical
Control Panel	LCD: 4.3" color touchscreen Icons: Wireless, Home, Help, Previous/Next, Back, Cancel
Power Requirements	100 to 240 V AC ±10%, 50/60 Hz, 1200 mA max
Power Consumption	Printing: < 35 W Power Save: < 4.5 W Standby: < 0.3 W
Acoustic Noise	Sound Power (Operating): 6.5 B(A) Sound Power (Standby): < 3.4 B(A) Sound Pressure (Operating): 48 dB(A) Sound Pressure (Standby:) < 16 dB(A)
Certifications	Safety: CSA, EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Mexico (NYCE) Electromagnetic: Class B requirements, including USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Certified as Class A product: Korea (KCC) Environmental: Energy Star, WEEE, EU RoHS, REACH, EuP, FEMP
Temperature / Humidity	Operating Temperature: 41 to 104 °F (5 to 40 °C) Recommended: 59 to 95 °F (15 to 35 °C) Storage Temperature: -13 to 131 °F (-25 to 55 °C) Operating Humidity: 20 to 80% Storage Humidity: 0 to 95%
Dimensions (WxDxH)	50.9 x 20.9 x 36.7" (129.2 x 53.0 x 93.2 cm)
Weight	86.4 lb (39.2 kg)
