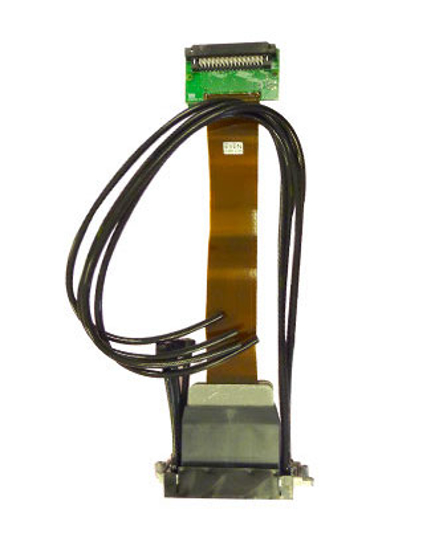

JFX500-2131 Printhead GEN5 Assy - M022626

This printhead GEN5 (MH5440) is suitable for Mimaki JFX500-2131 & UJV500-160 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density.

This is the original Mimaki part (number M022626 replacing M013497, M016979 and M015068).

The following items are expressly excluded from warranty coverage:

• Defects in printers related, in any way, to the use of any non-original or DIGINK inks or ink cartridges and nozzle clogging
• Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• Defects related to improper loading of media
• All other defects, failures or damage not considered manufacturing defects
• Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• Defects that are merely cosmetic in nature.

Product Specifications

• Dimensions: 89 x 25 x 69 mm (excluding cables)
• Head materials: SST, Nickel alloy and Epoxy Adhesive
• Nozzle plate surface: Coated SST
• Number of nozzles: 4 x 320 nozzles
• Nozzle spacing: 0.1693 mm
• Nozzle density: up to 600 npi
• Piezo yype: D33 Stacked PZT
• Temperature control: Integrated Heater and Thermistor
• Operator temperature range: Up to 80° C
• Native drop volume: 7 pl
• Drop volume range: 7 - 35 pl
• Drop velocity: 7 m/s
• Jetting frequency: Up to 60 kHZ
• Life: 100 billion actuations per nozzle
• This printhead carries a manufacturer warranty.
• Country of origin : Japan

Compatible firmware:

• UJV55-320   FW Ver. 2.5 or later
• SIJ-320UV   FX Ver. 1.90 or later
• SWJ-320EA   FW Ver. 1.30 or later
• UJV500-160   FW Ver. 2.00 or later
• JFX500-2131   FW Ver. 3.40 or later

Printer compatibility
