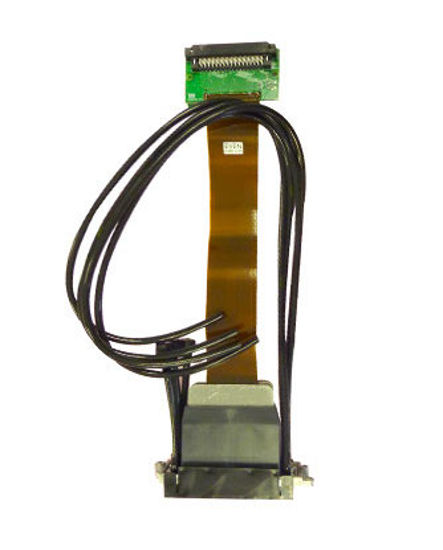

JFX500 2131 printhead GEN5 assy-M015068

JFX500-2131 Printhead GEN5 Assy - M015068

This printhead GEN5 (MH5420/5440) is suitable for Mimaki JFX500-2131 & UJV500-160 printers.

It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density.

This is the original Mimaki part (number M022626 replacing M013497, M016979 and M015068).

    Defects in printers related, in any way, to the use of any non-original or DIGINK inks or ink cartridges and nozzle clogging
    Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    Defects related to improper loading of media
    All other defects, failures or damage not considered manufacturing defects
    Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    Defects that are merely cosmetic in nature.

    Dimensions: 89 x 25 x 69 mm (excluding cables)
    Head materials: SST, Nickel alloy and Epoxy Adhesive
    Nozzle plate surface: Coated SST
    Number of nozzles: 4 x 320 nozzles
    Nozzle spacing: 0.1693 mm
    Nozzle density: up to 600 npi
    Piezo yype: D33 Stacked PZT
    Temperature control: Integrated Heater and Thermistor
    Operator temperature range: Up to 80° C
    Native drop volume: 7 pl
    Drop volume range: 7 - 35 pl
    Drop velocity: 7 m/s
    Jetting frequency: Up to 60 kHZ
    Life: 100 billion actuations per nozzle
    This printhead carries a manufacturer warranty.

Printer compatibility:

    UJV55-320   FW Ver. 2.5 or later
    SIJ-320UV   FX Ver. 1.90 or later
    SWJ-320EA   FW Ver. 1.30 or later
    UJV500-160   FW Ver. 2.00 or later
    JFX500-2131   FW Ver. 3.40 or later
