Konica KM1024i SHE 6PL Printhead - DP part: PPHKM19715

Konica KM1024i SHE 6PL Printhead - DP part: PPHKM19715

Price:

$1,185.08

Brand:

KONICA MINOLTA

Condition:

New

Shipping:

Calculated at checkout

Product Description

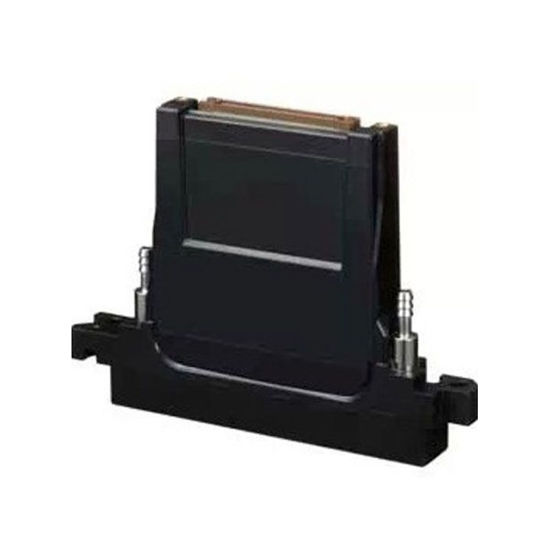

Konica KM1024i SHE 6PL Printhead

The Konica Minolta KM1024i SHE printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure.

In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted.

The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality.

The Konica Minolta KM1024i SHE printhead offers a Maximum Drive Frequency of 60kHz, approximately 3 Times greater than that of the KM1024 Series, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing.

Environmentally-considerate Approved Green Product.
The Konica Minolta KM1024i SHE printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series.

In addition, the nozzle unit surface area is the same as that of the KM1024 Series.

The following items are expressly excluded from warranty coverage:

Defects related, in any way, to the use of non-original inks
Clogged, missing or deviated nozzles
Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
Defects related to improper loading of media
All other defects, failures or damage not considered manufacturing defects
Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
Defects that are merely cosmetic in nature

Specifications

• Native Resolution: 360 dpi

• Cal. Droplet Size: 6 pl

• Max. Drops in Greyscale: 8 drops

• Tot. Amount of Nozzles: 1024 (256 nozzles per line)

• Print Width: 72 mm

• Typical Firing Frequency: 50 Khz
• Max Firing Frequency: 60 kHz
• Ink Compatibility: UV Inks
• Heater: integrated
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

This printhead carries a manufacturer warranty. Country of origin : Japan
