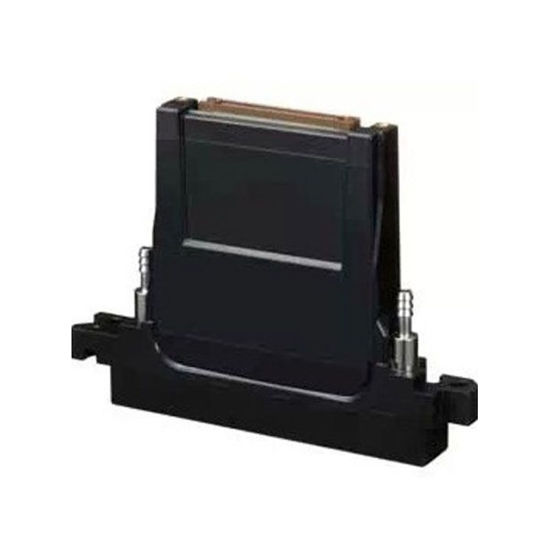

Konica KM1024i LHE 30PL Printhead

Konica KM1024i LHE 30PL Printhead

The Konica Minolta KM1024i LHE 30PL printhead is high speed, high productivity with ‘independent’ firing technology – not limited by the low speeds of older ‘shared wall’ technology. Proven in a wide range of single-pass systems, providing print up to 80 meters per minute from a single row of heads. The KM1024i printhead is available in 6, 14 and 30pl drop sizes. This Konica Minolta KM1024i LHE 30PL printhead is the large native drop volume variant (30pl) for UV inks (integrated heater). This is the genuine Konica 1024i LHE 30PL Printhead and not the alternative Konica KM HS1000.

    Defects related, in any way, to the use of non-original inks
    Clogged, missing or deviated nozzles
    Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    Defects related to improper loading of media
    All other defects, failures or damage not considered manufacturing defects
    Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    Defects that are merely cosmetic in nature.

- Technology: Piezo Drop On-Demand
- Grey scale: 8 levels
- Native Resolution: 360 dpi (4 rows x 90 dpi)
- Native drop volume (L): 30 pl
- Max. Drops in Greyscale: 8 drops
- Tot. Amount of Nozzles: 1024 (256 x 4 rows)
- Print Width: 72.12 mm
- Max Firing Frequency: 27 kHz
- Drive Voltage: 13+-3V
- Ink Compatibility: UV
- Heater: integrated
- Recommended temperature: under 55 degrees C
- Dimensions: W131mm x D18mm x H94mm
- Weight: less than 150g

This printhead carries a manufacturer warranty.
