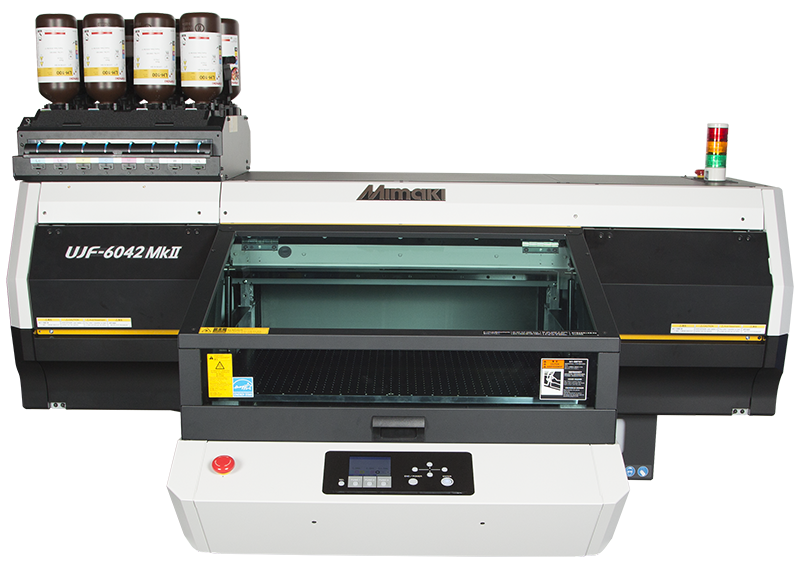

MIMAKI UJF-6042 FLATBED PRINTER

Price:

$7,325.82

Brand:

Mimaki

Condition:

New

Shipping:

Calculated at checkout


UJF-6042
Head		On-demand Piezo head
Print resolution	Y axis	720 dpi, 1,440 dpi, 1,800 dpi
Print resolution	X axis	600 dpi, 900 dpi, 1,200 dpi, 1,800 dpi
Ink	Type	UV curable ink ：LH-100 （C/M/Y/K/W/Lc/Lm/Cl） UV curable ink ：LF-140 （C/M/Y/K/Lc/Lm/W） UV curable ink ：LF-200 （C/M/Y/K/W) *March 2022: End of sales
	Supply system	220ml cartridge / 600ml ink pack
	Ink circulation	White ink circulation by MCT （Mimaki Circulation Technology）
Maximum print size（W×D）		610 × 420 mm (24.0" × 16.5")
Media	Size（W×D）	610 × 420 mm (24.0" × 16.5")
	Height	Less than 150 mm (5.9")
	Weight	Less than 7 kg (15.4 lbs) / When using a height adjuster, less than 4 kg (8.8 lbs)
Media suction		Air suction by vacuum
Print accuracy	Absolute accuracy	± 0.3 mm (0.01") or ± 0.3 % from specified print distance
Print accuracy	Repeatability	± 0.2 mm (0.01") or ± 0.1 % from specified print distance
UV unit		Equipped with UV LED (Light Emitting Diodes)
UV unit	Lifetime *1	About 10,000 hours
Interface		USB2.0
Applicable standard		VCCI class A, FCC Class A, CE Marking, RoHS Directive, REACH Regulation
Power specifications		AC100V ～ AC240V (Automated voltage conversion), 50 / 60 Hz
Power consumption		Less than 450 VA
Operational environment	Temperature	20℃ ～ 35℃ (68°F ～ 95°F)
	Humidity	35～65%Rh
	Temperature accuracy	20℃～25℃ (68°F ～ 77°F)
	Temperature gradient	Less than ± 10℃/h (± 18°F/h)
	Dust	Equivalent to normal office level
Dimensions（W×D×H）		1,510 × 966 × 960 mm (59.4 × 38.0 × 37.8")
Weight		150 kg (330.7 lbs)

*1 Reference value. There is no guarantee as to the lifetime.
・Inks would not be cured when printing speed is faster than that of draft mode.

Some of the screens and printing samples in this website are artificial renderings.
Specifications are subject to change without notice.
All trademarks or registered trademarks are the property of their respective owners.
Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.

Inks and substrates:

Please note that properties and adhesion, weather resistance etc. of ink and substrates can vary. Therefore please test materials before printing.
Some substrates require primer before printing. Please test materials beforehand or ask your sales representative.

Safety notice:
You are dealing with UV light sources that may harm your health. Please follow below guidelines strictly:

Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
Depending upon print mode, there might occur some VOC emittance from printed parts not yet cured and hardened.
In addition, please read the instructions and guidelines of the manual carefully and follow those.
