Ricoh GEN5 Printhead UV - MH5420 - DP part: PPHRI18039

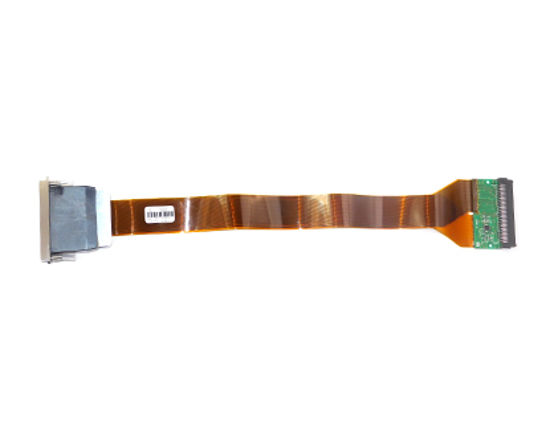

Ricoh GEN5 Printhead UV - MH5420

This GEN5 UV printhead is suitable for a range of UV and Solvent printers. It supports up to four colours and has a total of 1.280 nozzles.

It is built with longevity and robustness in mind and used in the latest industrial inkjet printers.

This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty.

This Ricoh GEN5 is available in two different cable lengths (connector not included): 140mm or 390mm.

Product Specifications

    Dimensions: 89 x 25 x 69 mm (excluding cables)
    Head materials: SST, Nickel alloy and Epoxy Adhesive
    Nozzle plate surface: Coated SST
    Number of nozzles: 4 x 320 nozzles
    Nozzle spacing: 0.1693 mm
    Nozzle density: up to 600 npi
    Piezo type: D33 Stacked PZT
    Temperature control: Integrated Heater and Thermistor
    Operator temperature range: Up to 80° C
    Native drop volume: 7 pl
    Drop volume range: 7 - 35 pl
    Drop velocity: 7 m/s
    Jetting frequency: Up to 60 kHZ
    Ink compatibility: UV Inks
    Life: 100 billion actuations per nozzle
