Spectra Nova JA 256/80 AAA - DP part: PPHSPNO80

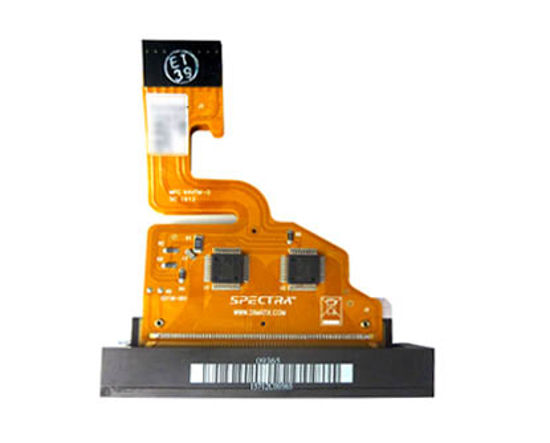

Spectra Nova JA 256/80 AAA

The Spectra Nova JA 256/80 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 450 dpi. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line, at a 0.011 inch distance between nozzles. The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually. It corresponds to PN 09170.

These Spectra heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.

This is the original Vutek print head (number AA90268 and AA90513).

The following items are expressly excluded from warranty coverage:

    Defects related, in any way, to the use of non-original inks
    Clogged, missing or deviated nozzles
    Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    Defects related to improper loading of media
    All other defects, failures or damage not considered manufacturing defects
    Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    Defects that are merely cosmetic in nature.

Specifications
- Technology: Piezo Electric
- Max. Resolution: 450 dpi
- Cal. Droplet Size: 80 pico litre
- Adj. Range for Droplet Size: 70-85 pico litre
- Tot. Amount of Nozzles: 256
- Nozzle Spacing: 279 microns
- Nozzle Diameter: 52 microns
- Firing Frequency: 20 kHz
- Operating Temperature: up to 90°C
- Ink Compatibility: Solvent, water-based and UV Inks

This printhead carries a manufacturer warranty.
