Kyocera Water Printhead KJ4B-QA - DP part: PPHKY82541

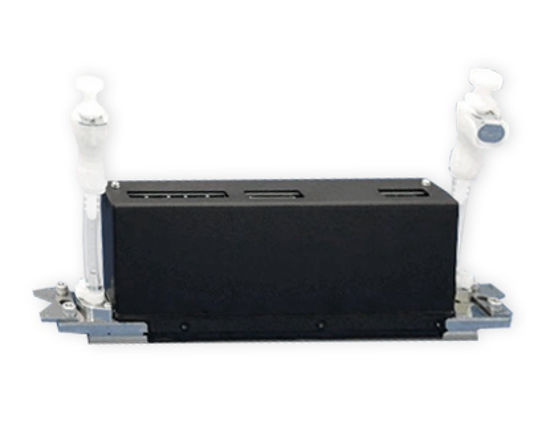

Kyocera Water Printhead KJ4B-QA

This Kyocera KJ4B-QA is designed for high speed printing with water-based inks, in 600 dpiwith a maximum drive frequency of 30kHz.

It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.

The Kyocera KJ4B-QA is equipped with internal filters to preventparticles to reach the nozzle plate and an internal heater that adjusts the temperature.

- Standard for all printers other than MS and EFI Reggiani
- MS printers including the head cable
- EFI Reggiani printers including the head cable

Please select the printhead model carefully as they are not interchangeable.

    Ink Type:  Aqueous Ink
    Dimensions: 200 × 25 × 59.3mm
    Dry Weight: 420g
    Total Nozzles: 2.656
    Nozzle Pitch: 0.042mm
    Standard Resolution: 600 x 600 dpi
    Print Width: 108.25mm
    Max. Drive Frequency: 30kHz
    Drop Volume: 5, 7, 12 and 18pl
    Max. Sprint Speed: 75m/min
    Optimum Ink viscosity: 5.0 - 6.0 mPa*s

    -. Defects related, in any way, to the use of non-original inks
    -. Clogged, missing or deviated nozzles
    -. Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    -. Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    -. Defects related to improper loading of media
    -. All other defects, failures or damage not considered manufacturing defects
    -. Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    -. Defects that are merely cosmetic in nature.
