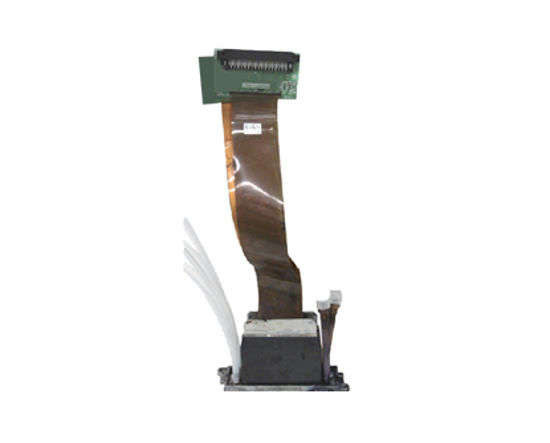

SWJ 320 GEN5 Assy Packaging - M022650

SWJ 320 GEN5 Assy Packaging - M022650

This SWJ-320 GEN5 Assy Packaging - M022650 is suitable for Mimaki SWJ-320 printers. This is the original Mimaki part (number M022650 replacing M012639).

This packaging contains the assembly including tubes, valves, ink connectors and brackets.

    Defects related, in any way, to the use of non-original inks
    Clogged, missing or deviated nozzles
    Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    Defects related to improper loading of media
    All other defects, failures or damage not considered manufacturing defects
    Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    Defects that are merely cosmetic in nature.

    Dimensions: 89 x 25 x 69 mm (excluding cables)
    Head materials: SST, Nickel alloy and Epoxy Adhesive
    Nozzle plate surface: Coated SST
    Number of nozzles: 4 x 320 nozzles
    Nozzle spacing: 0.1693 mm
    Nozzle density: up to 600 npi
    Piezo yype: D33 Stacked PZT
    Temperature control: Integrated Heater and Thermistor
    Operator temperature range: Up to 80° C
    Native drop volume: 7 pl
    Drop volume range: 7 - 35 pl
    Drop velocity: 7 m/s
    Jetting frequency: Up to 60 kHZ
    Life: 100 billion actuations per nozzle

This printhead carries a manufacturer warranty.
