Snapmaker Artisan 3-in-1 3D Printer

Snapmaker Artisan 3-in-1 3D Printer

Price:

$1,989.89

Condition:

New

Shipping:

Calculated at checkout

Product Description

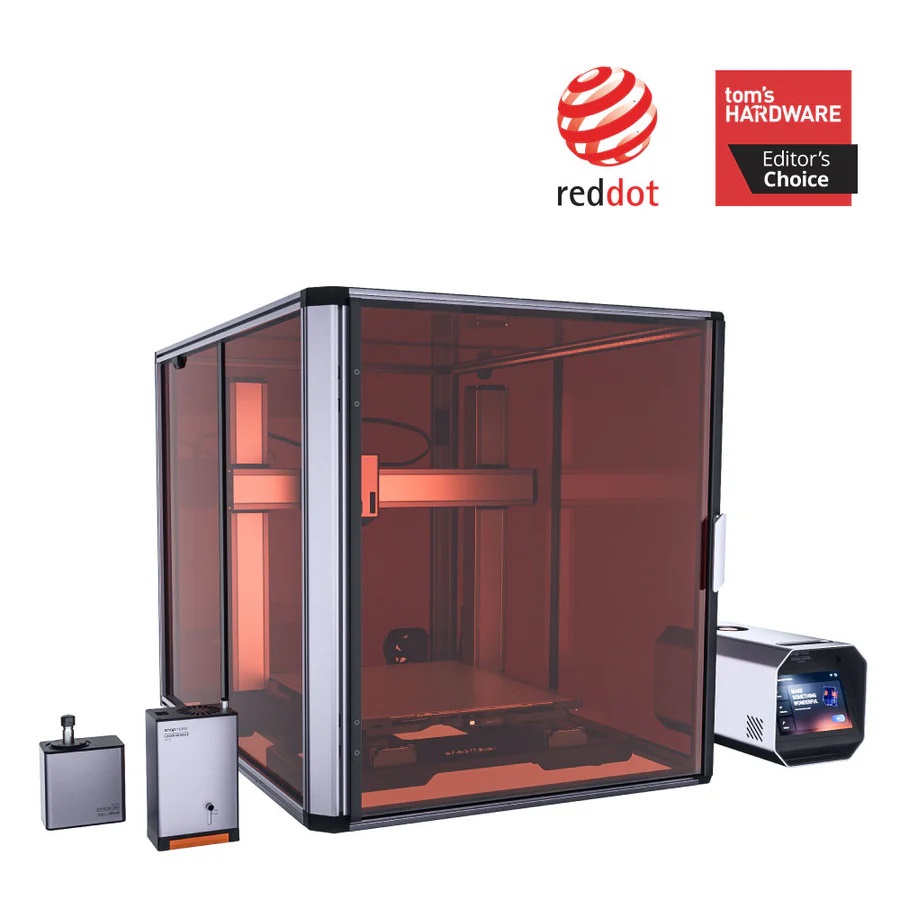

Snapmaker Artisan 3-in-1 3D Printer

Product Overview
• The Ultimate 3-in-1: Dual Extrusion 3D Printing, 40W/10W Laser, 200W CNC
• Large Work Area: 400mm × 400mm × 400mm
• Superior Hardware: Industrial-grade Linear Rail, Quick Swap Toolheads & Platforms, All-metal Design
• Laser Class 1 Safety: Laser-proof and Dust-proof Enclosure Included
• Easy-to-use: 7" Touchscreen, Free 3-in-1 Software

Specifications :

General

Dimensions (Machine)	580 mm × 620 mm × 634 mm
Dimensions (Machine & Enclosure)	665 mm × 943 mm × 705 mm * The product is sized at 849 mm × 995 mm × 705 mm with filament holders and hose connector mounted. Please take into account the sizes of these parts and the Integrated Controller when estimating the space occupied.
Package Weight	37.3kg (Package A) 25.2kg (Package B)
Package Weight	37.3kg (Package A) 19.5kg (Package B) 1.91kg (Package C)
Data Transmission Methods	Wi-Fi, USB cable, USB flash drive
Supported Software	Snapmaker Luban, and third-party software
OS Supported by Luban	Windows, macOS, Linux (only tested on Ubuntu)

Linear Module

Motor Driver Chip	TMC2209
Repeatability	± 0.05 mm
X-axis Lead	40 mm
Y-axis Lead	40 mm
Z-axis Lead	8 mm

Integrated Controller

Dimensions	189 mm × 300 mm × 191 mm
Touchscreen Size	7 inches
Power	350W + 400W
OS	Android

3D Printing

Work Area (W × D × H)	Artisan Dual Extrusion Module: 350mm × 400mm × 400mm (Dual Nozzle) Artisan Dual Extrusion Module: 375mm × 400mm × 400mm (Left Nozzle) Artisan Dual Extrusion Module: 400mm × 400mm × 400mm (Right Nozzle) 2.0 Dual Extrusion Module: 350mm × 370mm × 400mm (Dual Nozzle) 2.0 Dual Extrusion Module: 375mm × 370mm × 400mm (Left Nozzle) 2.0 Dual Extrusion Module: 400mm × 370mm × 400mm (Right Nozzle)
Nozzle Diameter (Standard)	0.4 mm
Nozzle Diameter (Optional)	0.2 mm, 0.6 mm, 0.8 mm
Nozzle Material (Standard)	Brass
Nozzle Material (Optional)	Hardened steel
Max. Nozzle Temperature	300°C
Max. Recommended Printing Speed	180 mm/s
Build Plate	Double-sided PEI-coated Glass
High-temperature Zone (Inner Zone)	260 mm × 260 mm
Max. Heated Bed Temperature (Inner Zone)	110°C
Max. Heated Bed Temperature (Outer Zone)	80°C
Supported Materials[2]	PLA, ABS, ASA, PETG, TPU (with hardness ≥ 90 Shore A), Breakaway Support for PLA, PVA, HIPS, and Nylon Carbon Fiber Reinforced Nylon and Glass Fiber Reinforced Nylon (The Hardened 0.4mm Hot Ends are required)
Supported Formats	stl, obj

Laser Engraving and Cutting

Work Area (W × D)	400 mm × 400 mm
Power	10W/40W
Laser Type	450 nm – 460 nm Semi-conductor
Max. Engraving Speed	200 mm/s
Max. Cutting Depth (Paulownia)	10W: 5mm Basswood Plywood 40W: 15mm Basswood Plywood
Operating Temperature	0°C–35°C
Laser Spot Dimension	10W: 0.05mm × 0.2mm 40w: 0.1mm × 0.15mm
Supported Materials for Engraving (10W Laser)	Painted Metal, SPTE (Steel Plate), Stainless Steel, Anodized Aluminum, Acrylic (Black Opaque), Pinewood, Plywood, Beechwood, Walnut, Bamboo, MDF (Medium-Density Fiberboard), Dark glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Corrugated Fiberboard, Cardboard
Supported Materials for Engraving (40W Laser)	Painted Metal, Tinplate, Stainless Steel, Anodized Aluminum, Acrylic (Black Opaque), Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF (Medium-Density Fiberboard), Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated Paper, Cardboard
Supported Materials for Cutting (10W Laser)	Basswood, Paulownia, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
Supported Materials for Cutting (40W Laser)	Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded),Stainless Steel(0.1mm)
Supported Formats	stl, svg, png, jpg, jpeg, bmp, dxf, snaplzr

CNC Carving and Cutting

Work Area (W × D)	400 mm × 400 mm
Power	200W
Max. Spindle Speed	18,000 RPM
Max. Work Speed[3]	50 mm/s (Beech); 33 mm/s (Acrylic)
Maximum Stepdown	2 mm (Beech); 1 mm (Acrylic)
Shank Diameter	0.5 mm–6.35 mm
Supported Materials (Ideal)	Hardwood (Beech, Walnut), Softwood, HDF, MDF, Plywood, Jade, Carbon Fiber, Acrylic, Epoxy Tooling Board, PCB
Supported Materials (Capable)	Aluminum (1000-6000 Series), Brass
Supported Formats	stl, svg, png, jpg, jpeg, bmp, dxf

In the Box :

Artisan 3-in-1 3D Printer Premium :

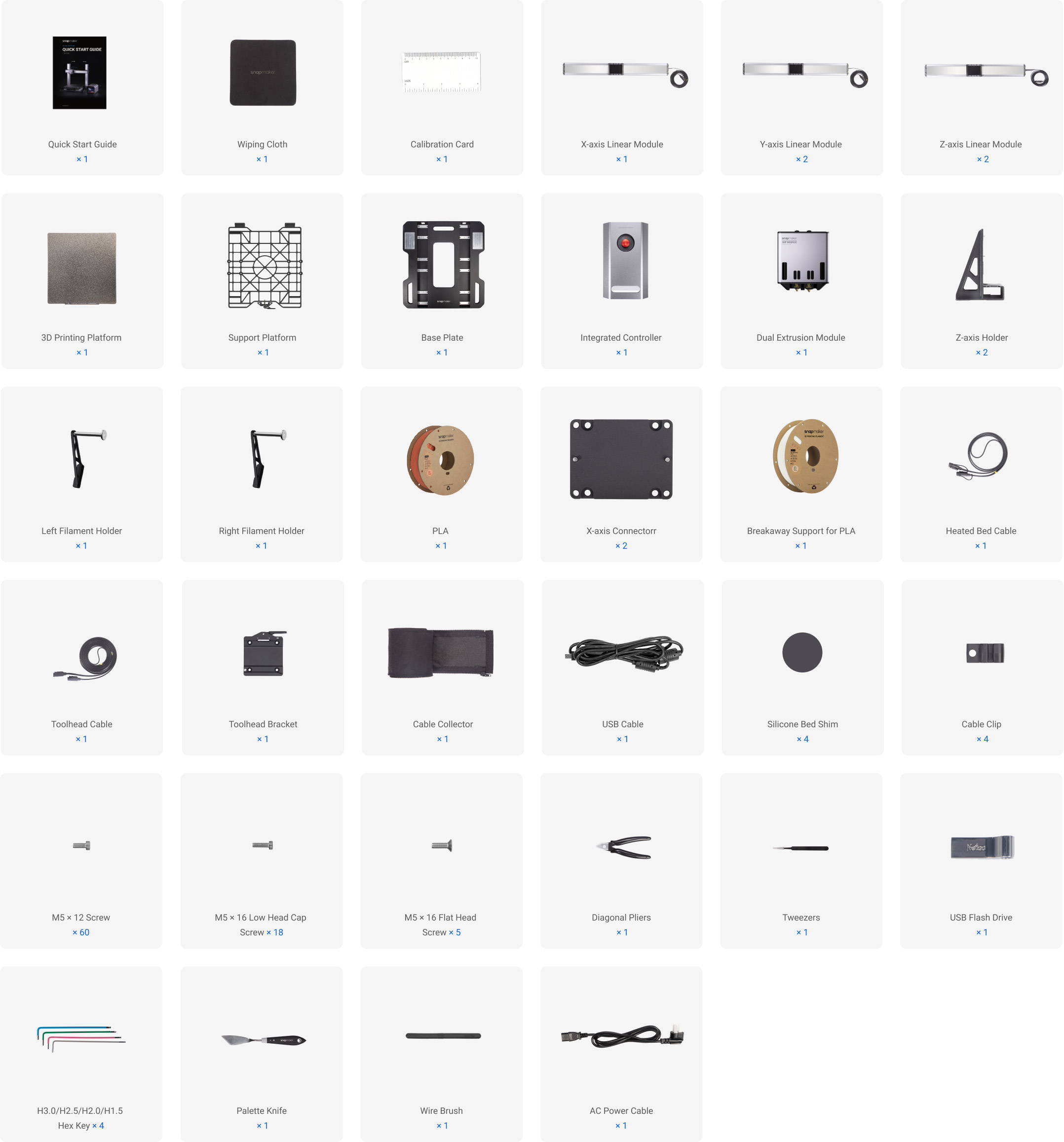

Package A

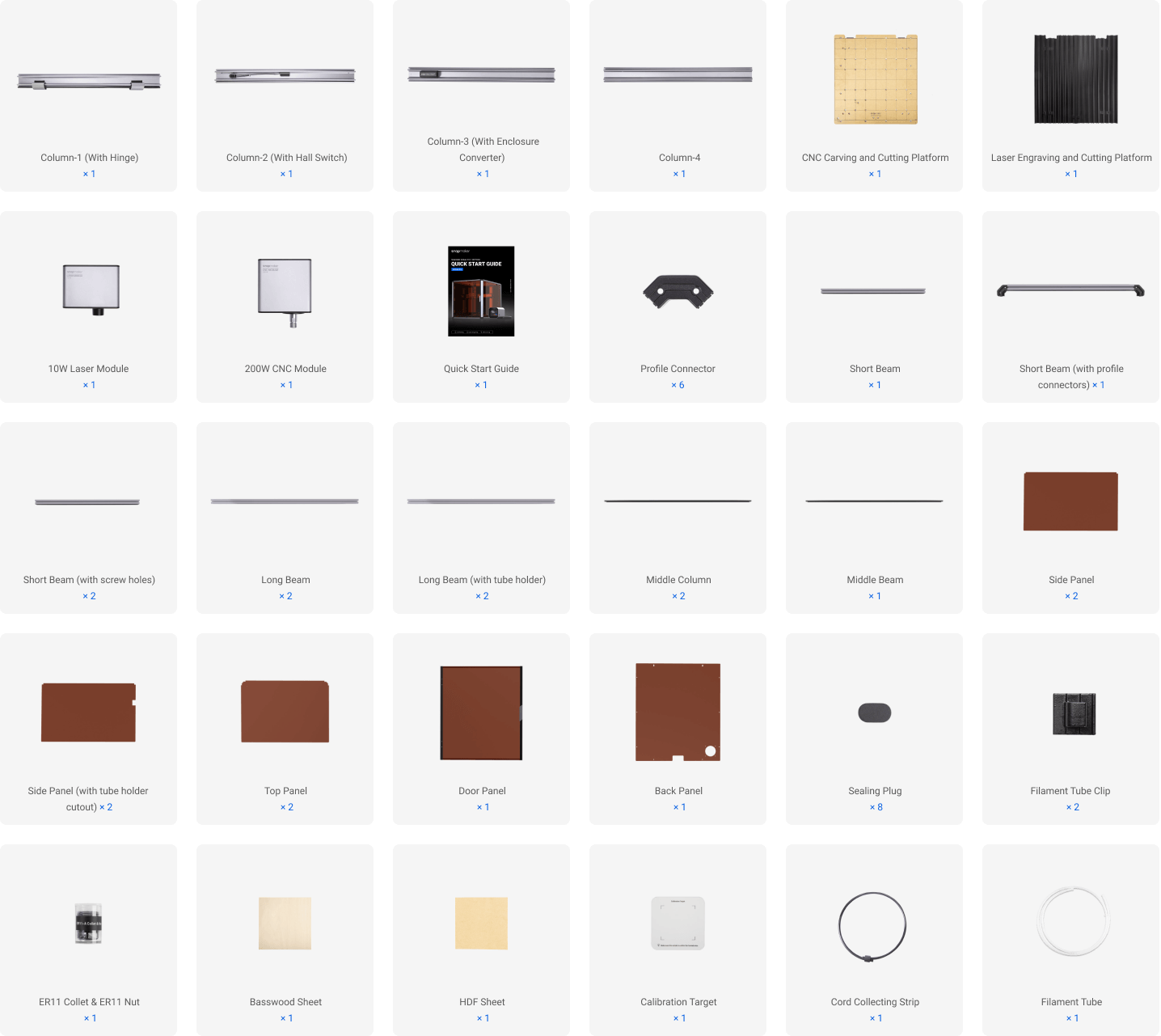

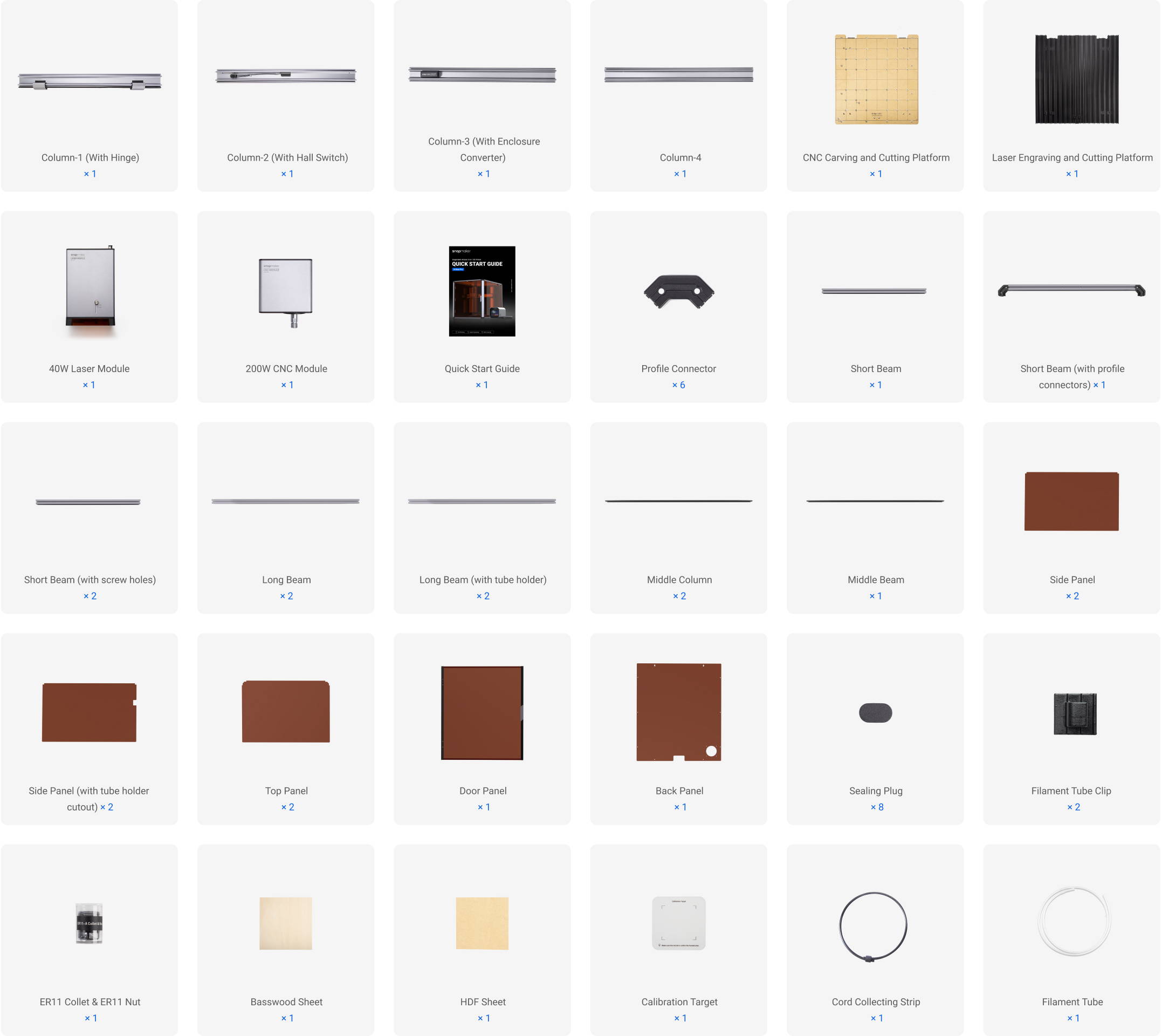

Package B

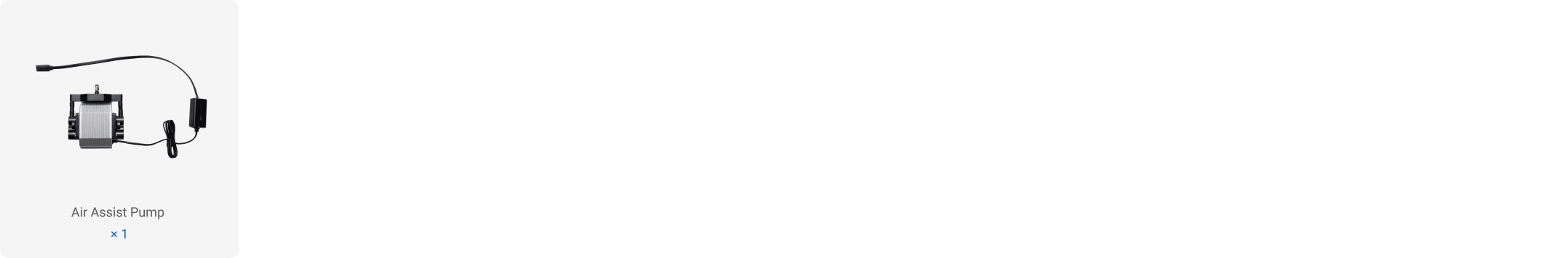

Package C

Artisan 3-in-1 3D Printer :

Package A

Package B

Notes:
[1] The test result was obtained by printing a 100 mm × 100 mm × 100 mm cube with PLA filament, and using 0.4 mm nozzle. Dimensional accuracy may vary depending on the testing conditions and product iteration, and is for reference only.
[2] Hardened steel nozzle should be used when printing with nylon and reinforced nylon filaments.
[3] The data is obtained by cutting beech with 3.175 mm Double Flute Flat End Mill and Acrylic with 3.175 mm Single Flute Flat End Mill. Depending on the CNC bits and materials used, the cutting speed might vary.
